SGM P.10

Categories ,

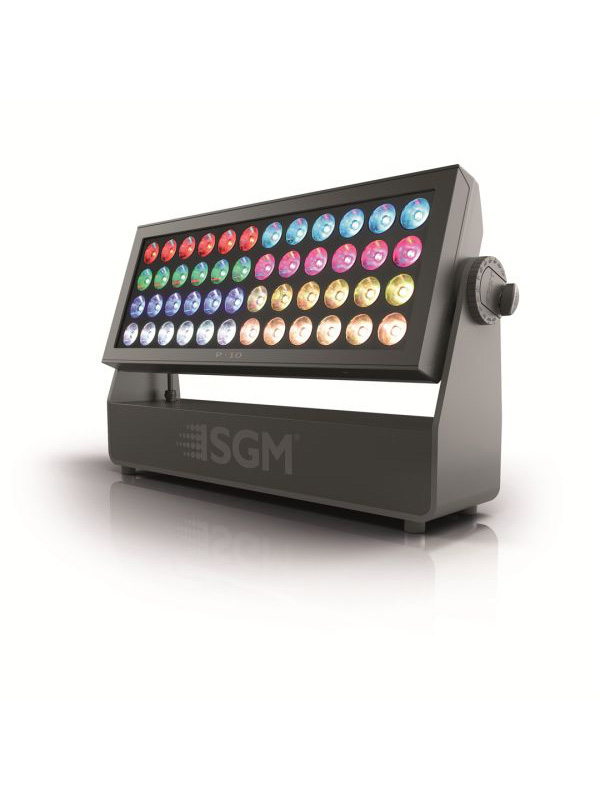

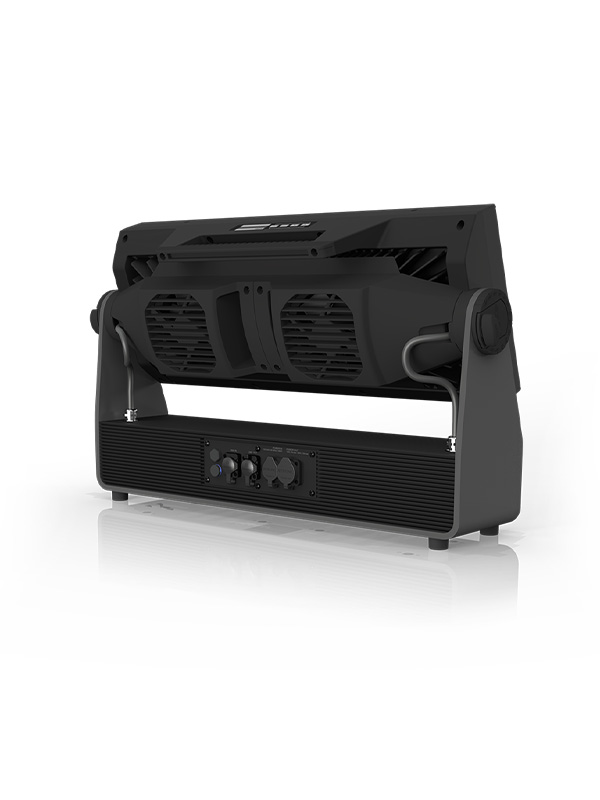

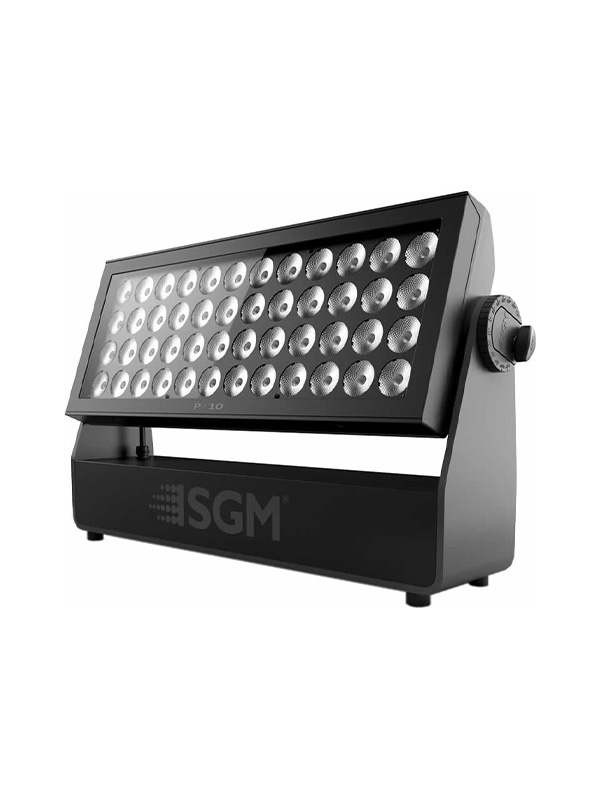

  • 40165 lumen 10º IP65-rated RGBW LED luminaire
  • 48 x 24W LEDs with 8 individually controllable segments
  • No color shifts / flicker-free operation
  • Best-in-class optical color mixing and dimming performance

Request a Quote Now and receive a response within one business day!

Description

  • LED expected lifetime (L70): 50,000 hours
  • Lightsource: 48 x high-power 24W RGBW LEDs
  • Native lens options: 10°
  • Optional filters: Elliptical horizontal, I/P, external (10° x 60° angle)
  • Photometric Color temperature range: 2000K – 10000K
  • Efficacy: 29 lm/W
  • Light output all LEDs on: 40165 lm
  • Light output blue: 2854 lm
  • Light output green: 13151 lm
  • Light output red: 7545 lm
  • Lumen per kilogram: 1922 lm / Kg
  • Lux @ 10m: 6530 lux
  • Lux @ 3m: 72555 lux
  • Lux @ 5m: 26122 lux
  • Native beam angle(s): 11° (with 10° lens)
  • Native field angle(s): 22°
  • Color options: Black – RAL 9004 White – RAL 9010
  • IK rating: IK07
  • IP class: IP65
  • Lens material: PE
  • Material: Aluminium, Tempered Glass
  • Net dimensions L x H x W: 702 x 402 x 206 mm
  • Net dimensions L x H x W (inches): 27.7 x 15.8 x 8.1 inches
  • Net weight: 20.9 kg (46.1 lbs)

Additional information

Weight 46.1 lbs
Dimensions 27.7 × 8.1 × 15.8 in
