Description
Projection System
High-aperture Epson 3-chip, 3LCD technology
Projection Method
Front / rear / ceiling mount
Driving Method
Epson Poly-silicon TFT Active Matrix
Pixel Number
2,304,000 dots (1920 x 1200) x 3
Color Brightness – Color Light Output
12000 lumens
White Brightness – White Light Output
12000 lumens
Aspect Ratio
Supports 4:3, 16:9, 16:10
Resolution
1920 x 1200 (WUXGA)
Resize
1280 x 1024, 1400 x 1050
Brightness Uniformity
(typical) 90%
Pixel Arrangement
Cross stripe
Throw Ratio Range
(For Standard Lens Only) 1.57 — 2.56
Size – projected distance
60″ – 500″
Contrast Ratio
2,500,000:1
Color Reproduction
Up to 1 billion colors
Light Source Life
Normal: 20,000 hours3
Extended: 30,000 hours3
Input Signal
NTSC/NTSC4.43/PAL/M-PAL/N-AL/PAL60/ SECAM/480i/576i/480p/576p/720p/1080i/1080p/UHD/4K

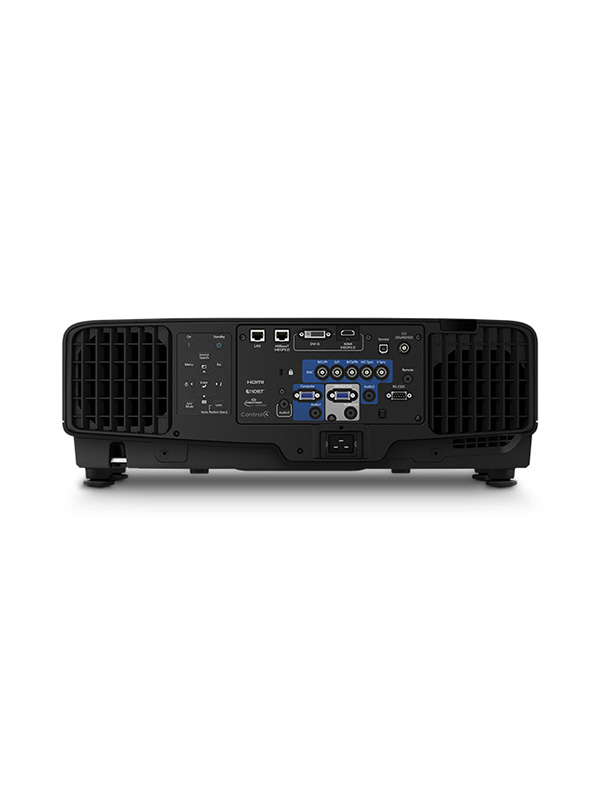

Interfaces
- 3G-SDI x 1
- DVI-D x 1
- HDMI x 1
- HDBaseT x 1
- 5-BNC
- VGA x 1
- Audio in: Mini Stereo x 3
- Variable audio out: Mini Stereo x 1
- USB connector Type B x 1: For service only
- USB connector Type A x 1: For wireless only
- Monitor out: Mini D-sub 15 pin x 1
- Serial: RS-232c x 1
Fan Noise:
Normal mode: 37 dB
Quiet mode: max. 30 dB
Power:
Power Supply Voltage
100 – 240 V ±10%, 50/60 Hz AC
Power Consumption
- Normal mode: 955 W
- ECO mode: 597 W
